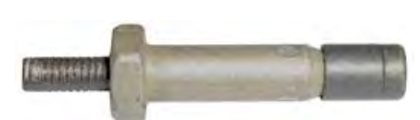

ASNA0082 at a glance
Specification
| Item | Value |
|---|---|
| Type | Blind bolt, internally threaded |
| Locking | Three parts: threaded rod with break-off groove, shank with head, locking ring; the lock forms by tri-lobe deformation of the shank thread |
| Status | Airbus Helicopters standard quoted in work card MTC 20-03-02-410 (EC130). Former part number 54207; the older Jo-Bolt version is replaced by this Visu-Lok / Jo-Lok fastener for new manufacture. |
Dimensions by size
| Dimension, in | -2 | -3 | -4 | -5 | -6 |
|---|---|---|---|---|---|
| dia_mm — Nominal diameter, mm (as printed in the work card) | 4.15 | 4.8 | 6.3 | 7.89 | 9.49 |
Maximum – minimum as tabulated in MTC 20-03-02-410 Issue 28 Jul 2011; letters as on the standard's drawing.
Part numbers
Every part number of MTC 20-03-02-410 Issue 28 Jul 2011, each with its own link. Codes (material, finish) build the full number in the box below.
Ø 4.15 mm9 part numbers
| Part no. | Grip min, mm | Grip max, mm |
|---|---|---|
| ASNA0082-201 | 0.79 | 2.36 |
| ASNA0082-202 | 2.39 | 3.96 |
| ASNA0082-203 | 3.99 | 5.56 |
| ASNA0082-204 | 5.59 | 7.14 |
| ASNA0082-205 | 7.16 | 8.74 |
| ASNA0082-206 | 8.76 | 10.31 |
| ASNA0082-207 | 10.34 | 11.91 |
| ASNA0082-208 | 11.94 | 13.49 |
| ASNA0082-209 | 13.51 | 15.09 |
Ø 4.8 mm9 part numbers
| Part no. | Grip min, mm | Grip max, mm |
|---|---|---|
| ASNA0082-301 | 0.79 | 2.36 |
| ASNA0082-302 | 2.39 | 3.96 |
| ASNA0082-303 | 3.99 | 5.56 |
| ASNA0082-304 | 5.59 | 7.14 |
| ASNA0082-305 | 7.16 | 8.74 |
| ASNA0082-306 | 8.76 | 10.31 |
| ASNA0082-307 | 10.34 | 11.91 |
| ASNA0082-308 | 11.94 | 13.49 |
| ASNA0082-309 | 13.51 | 15.09 |
Ø 6.3 mm9 part numbers
| Part no. | Grip min, mm | Grip max, mm |
|---|---|---|
| ASNA0082-401 | 0.79 | 2.36 |
| ASNA0082-402 | 2.39 | 3.96 |
| ASNA0082-403 | 3.99 | 5.56 |
| ASNA0082-404 | 5.59 | 7.14 |
| ASNA0082-405 | 7.16 | 8.74 |
| ASNA0082-406 | 8.76 | 10.31 |
| ASNA0082-407 | 10.34 | 11.91 |
| ASNA0082-408 | 11.94 | 13.49 |
| ASNA0082-409 | 13.51 | 15.09 |
Ø 7.89 mm9 part numbers
| Part no. | Grip min, mm | Grip max, mm |
|---|---|---|
| ASNA0082-501 | 0.79 | 2.36 |
| ASNA0082-502 | 2.39 | 3.96 |
| ASNA0082-503 | 3.99 | 5.56 |
| ASNA0082-504 | 5.59 | 7.14 |
| ASNA0082-505 | 7.16 | 8.74 |
| ASNA0082-506 | 8.76 | 10.31 |
| ASNA0082-507 | 10.34 | 11.91 |
| ASNA0082-508 | 11.94 | 13.49 |
| ASNA0082-509 | 13.51 | 15.09 |
Ø 9.49 mm9 part numbers
| Part no. | Grip min, mm | Grip max, mm |
|---|---|---|
| ASNA0082-601 | 0.79 | 2.36 |
| ASNA0082-602 | 2.39 | 3.96 |
| ASNA0082-603 | 3.99 | 5.56 |
| ASNA0082-604 | 5.59 | 7.14 |
| ASNA0082-605 | 7.16 | 8.74 |
| ASNA0082-606 | 8.76 | 10.31 |
| ASNA0082-607 | 10.34 | 11.91 |
| ASNA0082-608 | 11.94 | 13.49 |
| ASNA0082-609 | 13.51 | 15.09 |
Part number
What each code means
| Part | Meaning |
|---|---|
| Format | ASNA0082{prot}<dash> |
| - | Prot: Protective material code; shown as a hyphen in the work card example |
| Example | ASNA0082-402 — Diameter identification 4 (6.3 mm), grip identification 02 (2.39-3.96 mm thickness to be assembled) |
Notes from the standard
- Hexagon-head version; all five diameters are listed for grips 01 to 09.
- Part number structure per the work card: standard number, protective material code, one-digit diameter identification (2 to 6), two-digit grip identification (01 to 09). The work card example also shows a bracketed type letter, (W), whose meaning it does not explain.
- Diameter identifications 2 to 6 were matched to the Ø column by the order of the work-card tables; confirm against the standard before ordering.
- The work card checks grip thickness with grip gauge LFVLG-1 and installs with hand wrenches (series 718/729/730/731) or a pneumatic tool; the threaded rod is pulled until it breaks off.
Sources
- MTC 20-03-02-410 Issue 28 Jul 2011, 28 Jul 2011 — Installation of Visu-Lok / Jo-Lok threaded rivets, general principles — dimensions, part numbers and notes. Public domain, distribution unlimited.
