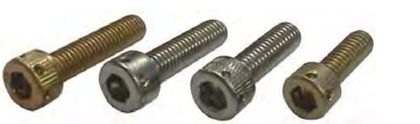

MS24674 screw — cylindrical socket head cap, drilled for safety wire (plain or knurled)

Screw, Cap, Socket Head, Hexagon, Drilled, Corrosion-Resisting Steel, UNC-3A, from MS24674 Rev. D w/ Amendment 1. Every row below is transcribed from the standard and has its own link.

MS24674 at a glance

MS24674, screw, cap, socket head, hexagon, drilled, corrosion-resisting steel, unc-3a
MS24674
MS24674 engineering drawing with dimensions
Engineering drawing · dimensions in inches

Specification

ItemValue
Headcylindrical socket head cap, drilled for safety wire (plain or knurled)
Drivehexagon socket
Thread seriescoarse (UNC-3A)
MaterialAustenitic corrosion-resisting steel in accordance with FF-S-86.
Heat treatmentMechanical properties per FF-S-86 plus the magnetic permeability limit (2.0 max, air = 1.0, H = 200 oersteds, ASTM A 342 indicator). Tensile loads based on 80,000 psi minimum ultimate tensile strength.
ItemValue
FinishPassivated in accordance with QQ-P-35.
ProcurementFF-S-86
Thread specificationMIL-S-7742
StatusRev. D (9 Nov 1984) with Amendment 1 (19 Apr 1996). Notice 1 (21 Jun 2000): canceled and superseded by NASM24674; the part numbers are identical (MS24674-1 = NASM24674-1). Earlier revisions marked on the sheet: A (27 Jan 1961), B (7 Jul 1975), C (15 Mar 1976); approved 7 Apr 1960.

Dimensions by size

Dimension, in.138-32 UNC-3A.164-32 UNC-3A.190-24 UNC-3A.250-20 UNC-3A.3125-18 UNC-3A.375-16 UNC-3A.500-13 UNC-3A.625-11 UNC-3A
nominal#6#8#101/45/163/81/25/8
D body dia.1329 – .1380.1585 – .1640.1840 – .1900.2435 – .2500.3053 – .3125.3678 – .3750.4919 – .5000.6163 – .6250
A head dia.218 – .226.262 – .270.303 – .312.365 – .375.457 – .469.550 – .562.735 – .750.921 – .938
H head height.134 – .138.159 – .164.185 – .190.244 – .250.306 – .312.368 – .375.492 – .500.616 – .625
S head side height min.124.148.171.225.281.337.450.562
J socket across flats.1094 – .1111.1406 – .1426.1562 – .1587.1875 – .1900.2500 – .2530.3125 – .3160.3750 – .3790.5000 – .5050
T key engagement min.064.077.090.120.151.182.245.307
G wall thickness min.047.056.065.095.119.143.190.238
C chamfer or radius max.005.005.005.008.008.008.010.010
R fillet extension.006 – .010.007 – .012.009 – .014.009 – .014.012 – .017.015 – .020.020 – .026.024 – .032
K hole location.035 – .050.040 – .060.045 – .065.065 – .085.084 – .104.103 – .123.140 – .160.178 – .198
E hole dia.033 – .039.044 – .050.044 – .050.044 – .050.044 – .050.061 – .067.061 – .067.061 – .067
recommended wire dia.020 – .028.032 – .040.032 – .040.032 – .040.032 – .040.045 – .057.045 – .057.045 – .057
alignment plug dia.025.030.030.030.030.051.051.051
min tensile lbf727112014002550420062001140018000
holes through head13333333

Minimum – maximum as tabulated in MS24674 Rev. D w/ Amendment 1; letters as on the standard's drawing.

Part numbers and lengths

Every part number of MS24674 Rev. D w/ Amendment 1, by thread size, each with its own link.

.138-32 UNC-3A5 part numbers · tolerance +0.00/-0.03

Part no.Length, in
MS24674-1.250
MS24674-2.375
MS24674-3.500
MS24674-4.625
MS24674-5.750

.164-32 UNC-3A7 part numbers · tolerance +0.00/-0.03

Part no.Length, in
MS24674-6.250
MS24674-7.375
MS24674-8.500
MS24674-9.625
MS24674-10.750
MS24674-11.875
MS24674-121.000

.190-24 UNC-3A8 part numbers

Part no.Length, inTol.
MS24674-13.375+0.00/-0.03
MS24674-14.500+0.00/-0.03
MS24674-15.625+0.00/-0.03
MS24674-16.750+0.00/-0.03
MS24674-17.875+0.00/-0.03
MS24674-181.000+0.00/-0.03
MS24674-191.250+0.00/-0.04
MS24674-201.500+0.00/-0.04

.250-20 UNC-3A10 part numbers

Part no.Length, inTol.
MS24674-21.375+0.00/-0.03
MS24674-22.500+0.00/-0.03
MS24674-23.625+0.00/-0.03
MS24674-24.750+0.00/-0.03
MS24674-25.875+0.00/-0.03
MS24674-261.000+0.00/-0.03
MS24674-271.250+0.00/-0.04
MS24674-281.500+0.00/-0.04
MS24674-291.750+0.00/-0.04
MS24674-302.000+0.00/-0.04

.3125-18 UNC-3A12 part numbers

Part no.Length, inTol.
MS24674-31.375+0.00/-0.03
MS24674-32.500+0.00/-0.03
MS24674-33.625+0.00/-0.03
MS24674-34.750+0.00/-0.03
MS24674-35.875+0.00/-0.03
MS24674-361.000+0.00/-0.03
MS24674-371.250+0.00/-0.04
MS24674-381.500+0.00/-0.04
MS24674-391.750+0.00/-0.04
MS24674-402.000+0.00/-0.04
MS24674-412.250+0.00/-0.04
MS24674-422.500+0.00/-0.04

.375-16 UNC-3A11 part numbers

Part no.Length, inTol.
MS24674-43.500+0.00/-0.03
MS24674-44.625+0.00/-0.03
MS24674-45.750+0.00/-0.03
MS24674-46.875+0.00/-0.03
MS24674-471.000+0.00/-0.03
MS24674-481.250+0.00/-0.04
MS24674-491.500+0.00/-0.04
MS24674-501.750+0.00/-0.04
MS24674-512.000+0.00/-0.04
MS24674-522.250+0.00/-0.04
MS24674-532.500+0.00/-0.04

.500-13 UNC-3A11 part numbers

Part no.Length, inTol.
MS24674-54.750+0.00/-0.03
MS24674-55.875+0.00/-0.03
MS24674-561.000+0.00/-0.03
MS24674-571.250+0.00/-0.04
MS24674-581.500+0.00/-0.04
MS24674-591.750+0.00/-0.04
MS24674-602.000+0.00/-0.04
MS24674-612.250+0.00/-0.04
MS24674-622.500+0.00/-0.04
MS24674-632.750+0.00/-0.08
MS24674-643.000+0.00/-0.08

.625-11 UNC-3A9 part numbers

Part no.Length, inTol.
MS24674-651.000+0.00/-0.03
MS24674-661.250+0.00/-0.04
MS24674-671.500+0.00/-0.04
MS24674-681.750+0.00/-0.04
MS24674-692.000+0.00/-0.04
MS24674-702.250+0.00/-0.04
MS24674-712.500+0.00/-0.04
MS24674-722.750+0.00/-0.08
MS24674-733.000+0.00/-0.08

Part number

How a MS24674 part number is built, segment by segment

What each code means

PartMeaning
FormatMS24674-<dash number>
ExampleMS24674-1 = .138-32 UNC-3A, 0.250 long, corrosion-resisting steel (printed example)
Length tolerance, .250 to 1.000+0.00/-0.03
Length tolerance, 1.250 to 2.500+0.00/-0.04
Length tolerance, 2.750 to 3.000+0.00/-0.08
DashDash number from the length table selects thread size and length (1 to 73)

Notes from the standard

  • Threads per MIL-S-7742 (as printed); acceptability: complete (full form) threads within two threads of the head, measured with a thread ring gage, on screws above the heavy line in the length table (rows with threaded_to_head = true). Rows below the heavy line carry the maximum grip length LG and minimum body length LB.
  • Head may or may not be knurled at the manufacturer's option; type of knurling optional. Diameter of a knurled head must not exceed the maximum head diameter.
  • Drilled hole data: screw #6 (.138) has one (1) hole drilled through the head, centered as close as practicable on a flat of the hexagon socket; screws #8 (.164) and larger have three (3) holes within the flats of the socket that shall not break the corners of the hexagon socket.
  • Edges of the holes on the outside of the head are chamfered 45 degrees by 0.010 to 0.020 deep.
  • Alignment plug (Table I) shall pass completely through the head without deflection.
  • Tensile strength: loads in pounds based on 80,000 psi minimum ultimate tensile strength, calculated from the stress areas indicated in FED-STD-H28.
  • Magnetic permeability: 2.0 max (air = 1.0) at a field strength H = 200 oersteds; indicator per ASTM A 342 (Amendment 1, 19 Apr 1996, replaced MIL-I-17214).
  • Dimensions in inches unless otherwise specified. For design-feature purposes this standard takes precedence over the procurement documents referenced herein.
  • Scanned sheet: lengths per dash were assigned by row position in the length column (dash numbers print slightly offset from their length rows); grip LG/LB values are read as printed (two decimals).
