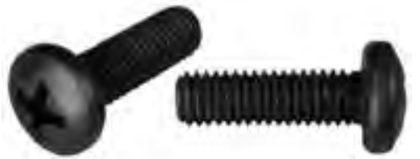

MS35214 screw — pan
Screw, Machine, Pan Head, Cross-Recessed, Brass, UNC-2A, from MS35214 Rev. D. Every row below is transcribed from the standard and has its own link.
MS35214 at a glance
MS35214Engineering drawing · dimensions in inches
Specification
Item
Value
Head
pan
Drive
cross-recess (MS9006)
Thread series
coarse (UNC-2A)
Material
Brass per QQ-B-613, QQ-B-626 or QQ-W-321 (Amendment 1: ASTM B16, ASTM B36/B36M, ASTM B121/B121M or ASTM B124). Minimum ultimate tensile strength 55,000 psi.
Item
Value
Finish
Black chemical finish per MIL-F-495; or cadmium plate QQ-P-416 Type II Class 3 when required (letter C after the dash number).
Procurement
FF-S-92
Thread specification
FED-STD-H28/2
Status
Rev. D (31 Dec 1987) with Amendment 1 (5 Oct 1992). Notice 1 (29 Feb 2000): canceled and superseded by NASM35214; the part numbers are identical (MS35214-1 = NASM35214-1). Approved 25 Jun 1953. Lined-out dash numbers (117 to 137) are inactive for new design after 12 Jun 1974; dash numbers 106 to 116 are non-preferred for new design.
Dimensions by size
Dimension, in
.0860-56 UNC-2A
.1120-40 UNC-2A
.1380-32 UNC-2A
.1640-32 UNC-2A
.1900-24 UNC-2A
.2500-20 UNC-2A
.3125-18 UNC-2A
.3750-16 UNC-2A
nominal
#2
#4
#6
#8
#10
1/4
5/16
3/8
D body dia
.0717 – .0860
.0925 – .1120
.1141 – .1380
.1399 – .1640
.1586 – .1900
.2127 – .2500
.2712 – .3125
.3287 – .3750
A head dia
.155 – .167
.205 – .219
.256 – .270
.306 – .322
.357 – .373
.473 – .492
.594 – .615
.716 – .740
H head height
.053 – .062
.070 – .080
.087 – .097
.105 – .115
.122 – .133
.162 – .175
.203 – .218
.244 – .261
P head radius min
.010
.010
.015
.015
.020
.035
.040
.040
R fillet max
.013
.017
.021
.025
.029
.038
.047
.056
driver size
1
1
2
2
2
3
4
4
min tensile lbf
200
330
500
770
960
1750
2800
4260
threads per inch
56
40
32
32
24
20
18
16
Minimum – maximum as tabulated in MS35214 Rev. D; letters as on the standard's drawing.
Part numbers and lengths
Every part number of MS35214 Rev. D, by thread size, each with its own link.
.0860-56 UNC-2A10 part numbers · tolerance +.00/-.03
MS35214-1 = brass, cross recessed, black chemical finish, .0860-56 UNC-2A, .125 long; MS35214-1C = same with cadmium plate
Length tolerance, .12 to 1.00
+.00/-.03
Length tolerance, 1.12 to 2.00
+.00/-.06
Length tolerance, 2.25 to 3.00
+.00/-.09
Dash
Dash number from Table I selects thread size and length (1 to 137)
(none)
Finish: black chemical finish per MIL-F-495
C
Finish: cadmium plate per QQ-P-416 Type II Class 3
Notes from the standard
Lengths are printed to two decimals; the sheet example gives the .12 length as .125 (the .56, 1.12, 1.38 and 1.88 lengths are 9/16, 1-1/8, 1-3/8 and 1-7/8).
Driver size (Phillips) per sheet: 1 for #2 and #4; 2 for #6, #8 and #10; 3 for 1/4; 4 for 5/16 and 3/8. Recess per MS9006.
Full form threads extend to within 2 threads or less of the head bearing surface for lengths through 2.00 in; longer lengths have a minimum full form thread length of 1.50 in.
On the sheet, lined-out dash numbers are inactive for new design after 12 Jun 1974 (117 to 137); dash numbers 106 to 116 are non-preferred for new design. All are included here with their status.
Amendment 1 changes the head radius P from a minimum to a reference value.
Interchangeability (Table II, sheet 3): screws covered by dash numbers in MS35212, MS35229, MS35231 and, in part, AN515 are canceled after 17 Dec 1962; the canceled screws cannot always replace the new ones and are used until stock is depleted. MS35212 screws are superseded by MS35214 screws with the same dash numbers; AN515 dash numbers with an "R" in place of the "-" are superseded by the same MS35214 dash numbers as those with the "-". "no replacement" = no superseding screw. The AN515 suffix is printed without the AN515 prefix on the sheet.
MS35214 Rev. D, 31 Dec 1987 — Screw, Machine-Pan Head, Cross-Recessed, Brass, UNC-2A — dimensions, part numbers and notes. Public domain, distribution unlimited. Notices: 5 Oct 1992 Amendment 1: Table I, P head radius: "MIN" replaced by "Reference". Requirement 1, material: brass shall be in accordance with ASTM B16, ASTM B36/B36M, ASTM B121/B121M or ASTM B124. Requirement 3, threads: FED-STD-H28/2; acceptability of screw threads in accordance with FED-STD-H28/20, System 21.; 1 29 Feb 2000 MS35214D is canceled and superseded by NASM35214. The Part Identification Number for MS35214D and the part number for NASM35214 are identical.
