AN530 screw — round (design I recessed)

Screw, Tapping, Thread Forming or Thread Cutting, Round Head, Spaced Thread, from AN530 Rev. 6. Every row below is transcribed from the standard and has its own link.

AN530 at a glance

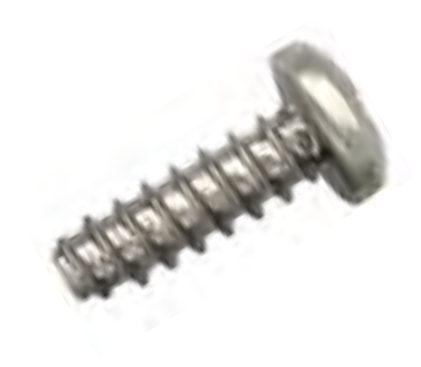

AN530, screw, tapping, thread forming or thread cutting, round head, spaced thread
AN530
AN530 engineering drawing with dimensions
Engineering drawing · dimensions in inches

Specification

ItemValue
Headround (design I recessed)
Drivecross-recess (design I); slotted and design II inactive after 17 Feb 1959
Thread seriestapping, spaced thread (type B point, thread forming; thread cutting with F code)
MaterialCarbon steel, case hardened, or corrosion-resistant steel type 410, hardened.
ItemValue
FinishCarbon steel: cadmium plate QQ-P-416 Type I Class 3. Corrosion-resistant steel: none.
ProcurementMIL-S-6033
StatusRev. 6 (17 Feb 1959). Notice 1 (22 Aug 1991): canceled and superseded by MS51861 (Type AB, pan head, cross-recessed). Design II recessed and slotted head screws inactive for design after 17 Feb 1959. SCAN WARNING: the dimension tables of the available copy are mostly illegible; only legible items are filled in.

Dimensions by size

Dimension, inNo. 2No. 4No. 6No. 8No. 101/4
threads per inch322420181614
dimensionsnot legible in scan (D max dia, E head dia, H, P point dia): complete from a legible copynot legible in scan (D max dia, E head dia, H, P point dia): complete from a legible copynot legible in scan (D max dia, E head dia, H, P point dia): complete from a legible copynot legible in scan (D max dia, E head dia, H, P point dia): complete from a legible copynot legible in scan (D max dia, E head dia, H, P point dia): complete from a legible copynot legible in scan (D max dia, E head dia, H, P point dia): complete from a legible copy

Minimum – maximum as tabulated in AN530 Rev. 6; letters as on the standard's drawing.

Part numbers and lengths

Every part number of AN530 Rev. 6, by thread size, each with its own link.

22 part numbers · tolerance +0/-1/32

Part no.Length, in
AN530-2-33/16
AN530-2-41/4

43 part numbers · tolerance +0/-1/32

Part no.Length, in
AN530-4-41/4
AN530-4-63/8
AN530-4-81/2

69 part numbers

Part no.Length, inTol.
AN530-6-41/4+0/-1/32
AN530-6-63/8+0/-1/32
AN530-6-81/2+0/-1/32
AN530-6-105/8+0/-1/32
AN530-6-123/4+0/-3/64
AN530-6-147/8+0/-3/64
AN530-6-161+0/-3/64
AN530-6-201-1/4+0/-3/64
AN530-6-241-1/2+0/-3/64

812 part numbers

Part no.Length, inTol.
AN530-8-63/8+0/-1/32
AN530-8-81/2+0/-1/32
AN530-8-105/8+0/-1/32
AN530-8-123/4+0/-3/64
AN530-8-147/8+0/-3/64
AN530-8-161+0/-3/64
AN530-8-201-1/4+0/-3/64
AN530-8-241-1/2+0/-3/64
AN530-8-281-3/4+0/-1/16
AN530-8-322+0/-1/16
AN530-8-362-1/4+0/-1/16
AN530-8-402-1/2+0/-1/16

1012 part numbers

Part no.Length, inTol.
AN530-10-63/8+0/-1/32
AN530-10-81/2+0/-1/32
AN530-10-105/8+0/-1/32
AN530-10-123/4+0/-3/64
AN530-10-147/8+0/-3/64
AN530-10-161+0/-3/64
AN530-10-201-1/4+0/-3/64
AN530-10-241-1/2+0/-3/64
AN530-10-281-3/4+0/-1/16
AN530-10-322+0/-1/16
AN530-10-362-1/4+0/-1/16
AN530-10-402-1/2+0/-1/16

1410 part numbers

Part no.Length, inTol.
AN530-14-105/8+0/-1/32
AN530-14-123/4+0/-3/64
AN530-14-147/8+0/-3/64
AN530-14-161+0/-3/64
AN530-14-201-1/4+0/-3/64
AN530-14-241-1/2+0/-3/64
AN530-14-281-3/4+0/-1/16
AN530-14-322+0/-1/16
AN530-14-362-1/4+0/-1/16
AN530-14-402-1/2+0/-1/16

Part number

How a AN530 part number is built, segment by segment

What each code means

PartMeaning
FormatAN530[C]<size>[R][F]-<length>
-2Size No. 2
-4Size No. 4
-6Size No. 6
-8Size No. 8
-10Size No. 10
-14Size 1/4
LengthLength in sixteenths of an inch (-8 = 8/16 = 1/2 in)
ExampleAN530-6-8 = No. 6, carbon steel, slotted head, thread forming screw, 8/16 in long; AN530-6R8 recessed; AN530-6RF8 recessed, fluted (thread cutting); AN530C6R8 CRES recessed
Length tolerance, 3/16 to 5/8+0/-1/32
Length tolerance, 3/4 to 1-1/2+0/-3/64
Length tolerance, 1-3/4 to 2-1/2+0/-1/16
(none)Material: carbon steel, cadmium plated
CMaterial: corrosion-resistant steel
-Drive: slotted head
RDrive: recessed head
FPoint: fluted or slotted end (thread cutting); when R is present, F follows R

Notes from the standard

  • (a) Mark corrosion-resistant steel screws, sizes No. 4 (as printed, digit unclear) and larger, with a depressed dash.
  • (b) Grip length is measured from the underside of the head to the end of the full-threaded portion; the minimum grip values in the dash number table are for design only and are not an inspection requirement.
  • (c) Taper length S is 2 to 2-1/2 times the pitch of the thread.
  • (d) Screws designated as thread forming have plain ends (not fluted or slotted). Screws designated as thread cutting have fluted or slotted ends.
  • (e) Maximum crest of thread B up to and including size No. 8 equals .004 in; over size No. 8 equals .006 in. Tapered threads have unfinished crests.
  • Screws having five threads or less may have finer pitch threads, or shorter points, or finer pitch threads and shorter points, at the option of the producer.
  • Subject to AND10067 limitations the thread forming screws may be used with MIL-N-3337 sheet spring nuts; subject to AND10067 limitations the screws may be used as tapping screws with AND10325 hole sizes and AND10387 hole tolerances (as printed; scan partly legible).
  • Dash numbers read from the scan; the grip minimum column and the dimension table are not reliable and are omitted.

Sources

Educational reference only. not approved data. Always consult the applicable SRM, AMM, or AC 43.13-1B and your certifying authority.
