AN505 screw — flat, 82 degree

Screw, Machine, Flat Head, 82 Degree, Coarse Thread, from AN505 Rev. 7. Every row below is transcribed from the standard and has its own link.

AN505 at a glance

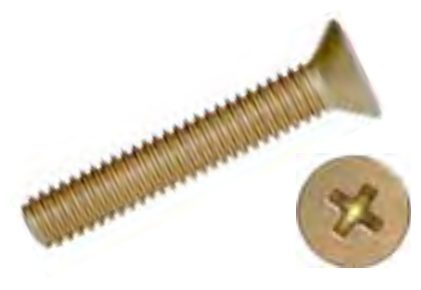

AN505, screw, machine, flat head, 82 degree, coarse thread
AN505
AN505 engineering drawing with dimensions
Engineering drawing · dimensions in inches

Specification

ItemValue
Headflat, 82 degree
Drivecross-recess (design 1) or slotted
Thread seriescoarse (UNC-2A)
MaterialCarbon steel grade 1010 (UNS G10100), ASTM A108, 55,000 psi min UTS; corrosion resistant steel QQ-S-763 class 430 or XM-7, ASTM A582 type 303 / 303Se, or MIL-S-7720 composition 302; brass ASTM B16, B36, B121, B134, B159 or B206, 55,000 psi min; aluminum alloy 2024, QQ-A-225/3 or QQ-A-225/6.
ItemValue
Heat treatmentAluminum alloy: 62,000 psi minimum ultimate tensile strength, MIL-H-6088.
FinishCarbon steel: cadmium plate QQ-P-416 Type II Class 3. Brass: black chemical finish MIL-F-495 or cadmium plate QQ-P-416 Type II Class 3 (per part number code). CRES: passivate QQ-P-35. Aluminum: anodize MIL-A-8625 Type I or II Class 1.
ProcurementFF-S-92
StatusRev. 7 (11 Sep 1997), Notice 1 (18 Nov 1999): inactive for new design, no longer used except for replacement. Cross-recessed and slotted head screws are canceled (note 7); superseded by MS35190, MS35198, MS35202 and MS51959. Not for airframe construction (note 6). Sizes No. 3-48 and No. 5-40 inactive for new design (note 8).

Dimensions by size

Dimension, in2-56 UNC-2A3-48 UNC-2A4-40 UNC-2A5-40 UNC-2A6-32 UNC-2A8-32 UNC-2A10-24 UNC-2A1/4-20 UNC-2A5/16-18 UNC-2A3/8-16 UNC-2A
A — major diameter, max.086.099.112.125.138.164.190.250.313.375
J — slot width.031 – .023.035 – .027.039 – .031.043 – .035.048 – .039.054 – .045.060 – .050.075 – .064.084 – .072.094 – .081
D diamax sharp .172, min sharp .156, abs min with max F .150max sharp .199, min sharp .181, abs min with max F .175max sharp .225, min sharp .207, abs min with max F .200max sharp .252, min sharp .232, abs min with max F .225max sharp .279, min sharp .257, abs min with max F .249max sharp .332, min sharp .308, abs min with max F .300max sharp .385, min sharp .359, abs min with max F .348max sharp .507, min sharp .477, abs min with max F .462max sharp .635, min sharp .600, abs min with max F .581max sharp .762, min sharp .722, abs min with max F .700
F max.014.015.016.018.019.022.025.031.037.043
H ref.051 – .040.059 – .048.067 – .055.075 – .062.083 – .069.100 – .084.116 – .098.153 – .131.191 – .165.230 – .200
H1.036 – .028.041 – .034.047 – .039.053 – .043.058 – .048.070 – .059.081 – .069.107 – .092.134 – .116.161 – .140
K.023 – .015.027 – .017.030 – .020.034 – .022.038 – .024.045 – .029.053 – .034.070 – .046.088 – .058.106 – .070
R max.035.040.050.050.060.060.085.100.110.125
undercut slottedH ['.036', '.028'], K ['.022', '.015']H ['.041', '.034'], K ['.025', '.017']H ['.047', '.039'], K ['.028', '.020']H ['.053', '.043'], K ['.031', '.022']H ['.058', '.048'], K ['.035', '.024']H ['.070', '.059'], K ['.040', '.029']H ['.081', '.069'], K ['.047', '.034']H ['.107', '.092'], K ['.061', '.046']H ['.134', '.116'], K ['.076', '.058']H ['.161', '.140'], K ['.091', '.070']

Minimum – maximum as tabulated in AN505 Rev. 7; letters as on the standard's drawing.

Part numbers and lengths

Every part number of AN505 Rev. 7, by thread size, each with its own link.

2-56 UNC-2A10 part numbers · tolerance +0/-1/32

Part no.Length, in
AN505-2-33/16
AN505-2-41/4
AN505-2-55/16
AN505-2-63/8
AN505-2-77/16
AN505-2-81/2
AN505-2-99/16
AN505-2-105/8
AN505-2-1111/16
AN505-2-123/4

3-48 UNC-2A14 part numbers · tolerance +0/-1/32

Part no.Length, in
AN505-3-33/16
AN505-3-41/4
AN505-3-55/16
AN505-3-63/8
AN505-3-77/16
AN505-3-81/2
AN505-3-99/16
AN505-3-105/8
AN505-3-1111/16
AN505-3-123/4
AN505-3-1313/16
AN505-3-147/8
AN505-3-1515/16
AN505-3-161

4-40 UNC-2A18 part numbers

Part no.Length, inTol.
AN505-4-33/16+0/-1/32
AN505-4-41/4+0/-1/32
AN505-4-55/16+0/-1/32
AN505-4-63/8+0/-1/32
AN505-4-77/16+0/-1/32
AN505-4-81/2+0/-1/32
AN505-4-99/16+0/-1/32
AN505-4-105/8+0/-1/32
AN505-4-1111/16+0/-1/32
AN505-4-123/4+0/-1/32
AN505-4-1313/16+0/-1/32
AN505-4-147/8+0/-1/32
AN505-4-1515/16+0/-1/32
AN505-4-161+0/-1/32
AN505-4-181-1/8+0/-1/16
AN505-4-201-1/4+0/-1/16
AN505-4-221-3/8+0/-1/16
AN505-4-241-1/2+0/-1/16

5-40 UNC-2A18 part numbers

Part no.Length, inTol.
AN505-5-33/16+0/-1/32
AN505-5-41/4+0/-1/32
AN505-5-55/16+0/-1/32
AN505-5-63/8+0/-1/32
AN505-5-77/16+0/-1/32
AN505-5-81/2+0/-1/32
AN505-5-99/16+0/-1/32
AN505-5-105/8+0/-1/32
AN505-5-1111/16+0/-1/32
AN505-5-123/4+0/-1/32
AN505-5-1313/16+0/-1/32
AN505-5-147/8+0/-1/32
AN505-5-1515/16+0/-1/32
AN505-5-161+0/-1/32
AN505-5-181-1/8+0/-1/16
AN505-5-201-1/4+0/-1/16
AN505-5-221-3/8+0/-1/16
AN505-5-241-1/2+0/-1/16

6-32 UNC-2A30 part numbers

Part no.Length, inTol.
AN505-6-33/16+0/-1/32
AN505-6-41/4+0/-1/32
AN505-6-55/16+0/-1/32
AN505-6-63/8+0/-1/32
AN505-6-77/16+0/-1/32
AN505-6-81/2+0/-1/32
AN505-6-99/16+0/-1/32
AN505-6-105/8+0/-1/32
AN505-6-1111/16+0/-1/32
AN505-6-123/4+0/-1/32
AN505-6-1313/16+0/-1/32
AN505-6-147/8+0/-1/32
AN505-6-1515/16+0/-1/32
AN505-6-161+0/-1/32
AN505-6-181-1/8+0/-1/16
AN505-6-201-1/4+0/-1/16
AN505-6-221-3/8+0/-1/16
AN505-6-241-1/2+0/-1/16
AN505-6-261-5/8+0/-1/16
AN505-6-281-3/4+0/-1/16
AN505-6-301-7/8+0/-1/16
AN505-6-322+0/-1/16
AN505-6-342-1/8+0/-3/32
AN505-6-362-1/4+0/-3/32
AN505-6-382-3/8+0/-3/32
AN505-6-402-1/2+0/-3/32
AN505-6-422-5/8+0/-3/32
AN505-6-442-3/4+0/-3/32
AN505-6-462-7/8+0/-3/32
AN505-6-483+0/-3/32

8-32 UNC-2A29 part numbers

Part no.Length, inTol.
AN505-8-41/4+0/-1/32
AN505-8-55/16+0/-1/32
AN505-8-63/8+0/-1/32
AN505-8-77/16+0/-1/32
AN505-8-81/2+0/-1/32
AN505-8-99/16+0/-1/32
AN505-8-105/8+0/-1/32
AN505-8-1111/16+0/-1/32
AN505-8-123/4+0/-1/32
AN505-8-1313/16+0/-1/32
AN505-8-147/8+0/-1/32
AN505-8-1515/16+0/-1/32
AN505-8-161+0/-1/32
AN505-8-181-1/8+0/-1/16
AN505-8-201-1/4+0/-1/16
AN505-8-221-3/8+0/-1/16
AN505-8-241-1/2+0/-1/16
AN505-8-261-5/8+0/-1/16
AN505-8-281-3/4+0/-1/16
AN505-8-301-7/8+0/-1/16
AN505-8-322+0/-1/16
AN505-8-342-1/8+0/-3/32
AN505-8-362-1/4+0/-3/32
AN505-8-382-3/8+0/-3/32
AN505-8-402-1/2+0/-3/32
AN505-8-422-5/8+0/-3/32
AN505-8-442-3/4+0/-3/32
AN505-8-462-7/8+0/-3/32
AN505-8-483+0/-3/32

10-24 UNC-2A28 part numbers

Part no.Length, inTol.
AN505-10-55/16+0/-1/32
AN505-10-63/8+0/-1/32
AN505-10-77/16+0/-1/32
AN505-10-81/2+0/-1/32
AN505-10-99/16+0/-1/32
AN505-10-105/8+0/-1/32
AN505-10-1111/16+0/-1/32
AN505-10-123/4+0/-1/32
AN505-10-1313/16+0/-1/32
AN505-10-147/8+0/-1/32
AN505-10-1515/16+0/-1/32
AN505-10-161+0/-1/32
AN505-10-181-1/8+0/-1/16
AN505-10-201-1/4+0/-1/16
AN505-10-221-3/8+0/-1/16
AN505-10-241-1/2+0/-1/16
AN505-10-261-5/8+0/-1/16
AN505-10-281-3/4+0/-1/16
AN505-10-301-7/8+0/-1/16
AN505-10-322+0/-1/16
AN505-10-342-1/8+0/-3/32
AN505-10-362-1/4+0/-3/32
AN505-10-382-3/8+0/-3/32
AN505-10-402-1/2+0/-3/32
AN505-10-422-5/8+0/-3/32
AN505-10-442-3/4+0/-3/32
AN505-10-462-7/8+0/-3/32
AN505-10-483+0/-3/32

1/4-20 UNC-2A28 part numbers

Part no.Length, inTol.
AN505-416-55/16+0/-1/32
AN505-416-63/8+0/-1/32
AN505-416-77/16+0/-1/32
AN505-416-81/2+0/-1/32
AN505-416-99/16+0/-1/32
AN505-416-105/8+0/-1/32
AN505-416-1111/16+0/-1/32
AN505-416-123/4+0/-1/32
AN505-416-1313/16+0/-1/32
AN505-416-147/8+0/-1/32
AN505-416-1515/16+0/-1/32
AN505-416-161+0/-1/32
AN505-416-181-1/8+0/-1/16
AN505-416-201-1/4+0/-1/16
AN505-416-221-3/8+0/-1/16
AN505-416-241-1/2+0/-1/16
AN505-416-261-5/8+0/-1/16
AN505-416-281-3/4+0/-1/16
AN505-416-301-7/8+0/-1/16
AN505-416-322+0/-1/16
AN505-416-342-1/8+0/-3/32
AN505-416-362-1/4+0/-3/32
AN505-416-382-3/8+0/-3/32
AN505-416-402-1/2+0/-3/32
AN505-416-422-5/8+0/-3/32
AN505-416-442-3/4+0/-3/32
AN505-416-462-7/8+0/-3/32
AN505-416-483+0/-3/32

5/16-18 UNC-2A25 part numbers

Part no.Length, inTol.
AN505-516-81/2+0/-1/32
AN505-516-99/16+0/-1/32
AN505-516-105/8+0/-1/32
AN505-516-1111/16+0/-1/32
AN505-516-123/4+0/-1/32
AN505-516-1313/16+0/-1/32
AN505-516-147/8+0/-1/32
AN505-516-1515/16+0/-1/32
AN505-516-161+0/-1/32
AN505-516-181-1/8+0/-1/16
AN505-516-201-1/4+0/-1/16
AN505-516-221-3/8+0/-1/16
AN505-516-241-1/2+0/-1/16
AN505-516-261-5/8+0/-1/16
AN505-516-281-3/4+0/-1/16
AN505-516-301-7/8+0/-1/16
AN505-516-322+0/-1/16
AN505-516-342-1/8+0/-3/32
AN505-516-362-1/4+0/-3/32
AN505-516-382-3/8+0/-3/32
AN505-516-402-1/2+0/-3/32
AN505-516-422-5/8+0/-3/32
AN505-516-442-3/4+0/-3/32
AN505-516-462-7/8+0/-3/32
AN505-516-483+0/-3/32

3/8-16 UNC-2A25 part numbers

Part no.Length, inTol.
AN505-616-81/2+0/-1/32
AN505-616-99/16+0/-1/32
AN505-616-105/8+0/-1/32
AN505-616-1111/16+0/-1/32
AN505-616-123/4+0/-1/32
AN505-616-1313/16+0/-1/32
AN505-616-147/8+0/-1/32
AN505-616-1515/16+0/-1/32
AN505-616-161+0/-1/32
AN505-616-181-1/8+0/-1/16
AN505-616-201-1/4+0/-1/16
AN505-616-221-3/8+0/-1/16
AN505-616-241-1/2+0/-1/16
AN505-616-261-5/8+0/-1/16
AN505-616-281-3/4+0/-1/16
AN505-616-301-7/8+0/-1/16
AN505-616-322+0/-1/16
AN505-616-342-1/8+0/-3/32
AN505-616-362-1/4+0/-3/32
AN505-616-382-3/8+0/-3/32
AN505-616-402-1/2+0/-3/32
AN505-616-422-5/8+0/-3/32
AN505-616-442-3/4+0/-3/32
AN505-616-462-7/8+0/-3/32
AN505-616-483+0/-3/32

Part number

How a AN505 part number is built, segment by segment

What each code means

PartMeaning
FormatAN505[material]<size>[R or -]<length>
-2Size No. 2-56
-3Size No. 3-48
-4Size No. 4-40
-5Size No. 5-40
-6Size No. 6-32
-8Size No. 8-32
-10Size No. 10-24
-416Size 1/4-20
-516Size 5/16-18
-616Size 3/8-16
LengthLength in sixteenths of an inch (-8 = 8/16 = 1/2 in)
ExampleAN505-4-8 = slotted, carbon steel, cadmium plated, 4-40 UNC-2A, 1/2 inch long; AN505C4R8 = cross-recessed, CRES, passivated, 4-40, 1/2 inch long
Length tolerance, up to 1 in+0/-1/32
Length tolerance, 1-1/8 to 2 in+0/-1/16
Length tolerance, 2-1/8 to 3 in+0/-3/32
(none)Material: carbon steel, cadmium plated
BMaterial: brass, black chemical finish
PBMaterial: brass, cadmium plated
UBMaterial: brass, no plating or finish
CMaterial: corrosion resistant steel, passivated
DDMaterial: aluminum alloy, anodized
-Drive: slotted head (no code between first and second dash number)
RDrive: cross-recessed head
UndercutDash numbers marked (d) have undercut heads.

Notes from the standard

  • Thread: class 2A, FED-STD-H28/2. Complete threads extend to within 2 threads of the head bearing surface for screws up to and including 2 in; longer screws have a minimum complete thread of 1-3/4 in.
  • Unthreaded portion diameter not less than the minimum pitch diameter nor more than the maximum major diameter of the thread.
  • Sizes No. 10 and larger carry a manufacturer symbol on the top of the head, indented. CRES sizes No. 5 and larger carry one dash, indented.
  • Cross-recess in accordance with MS9006. Slotted head: dimensions per the table.
  • The thread-size heading of the dash number table prints 5/16-16; the dimension table prints 5/16-18 UNC-2A (5/16-18 used here).
